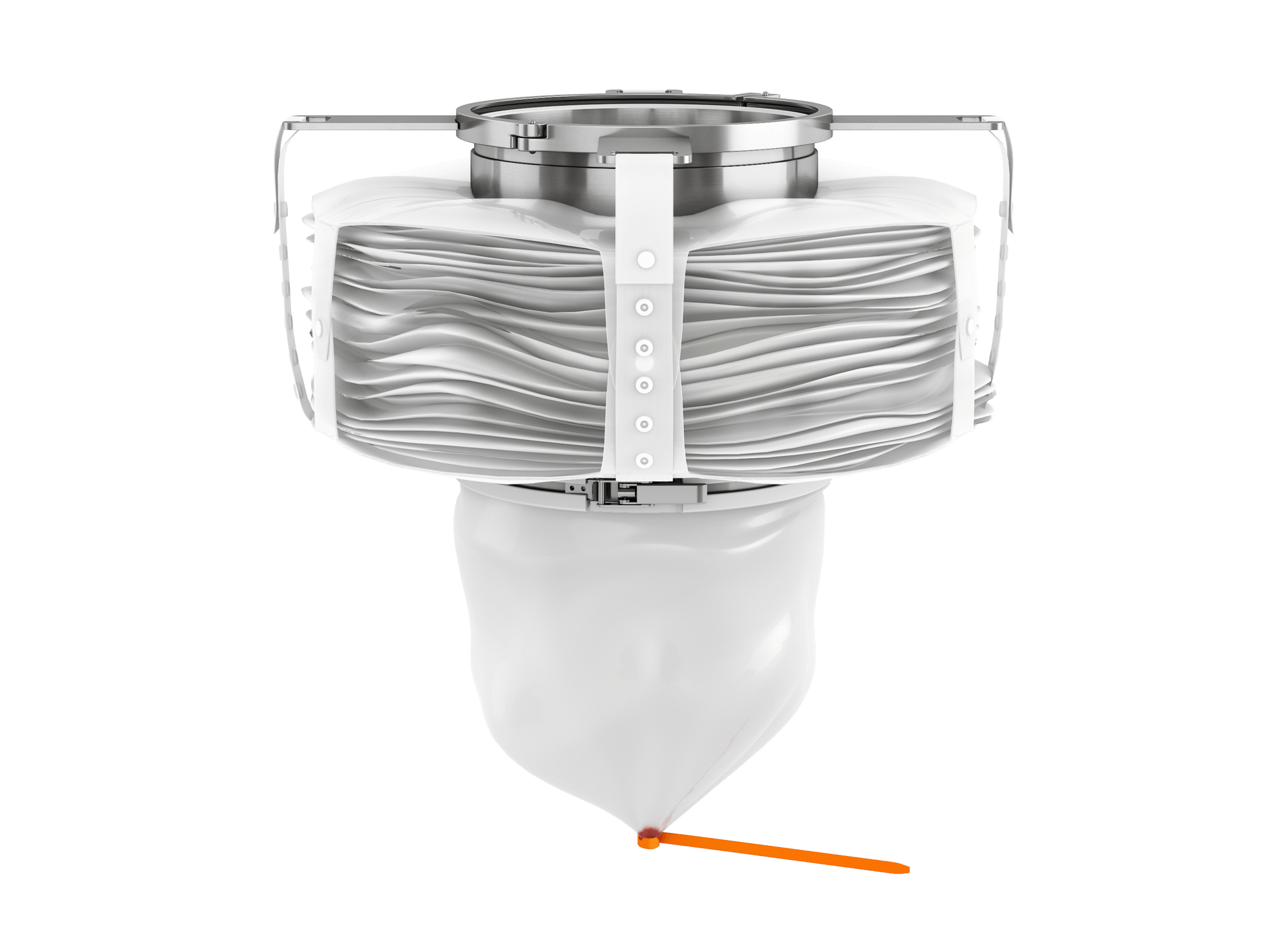

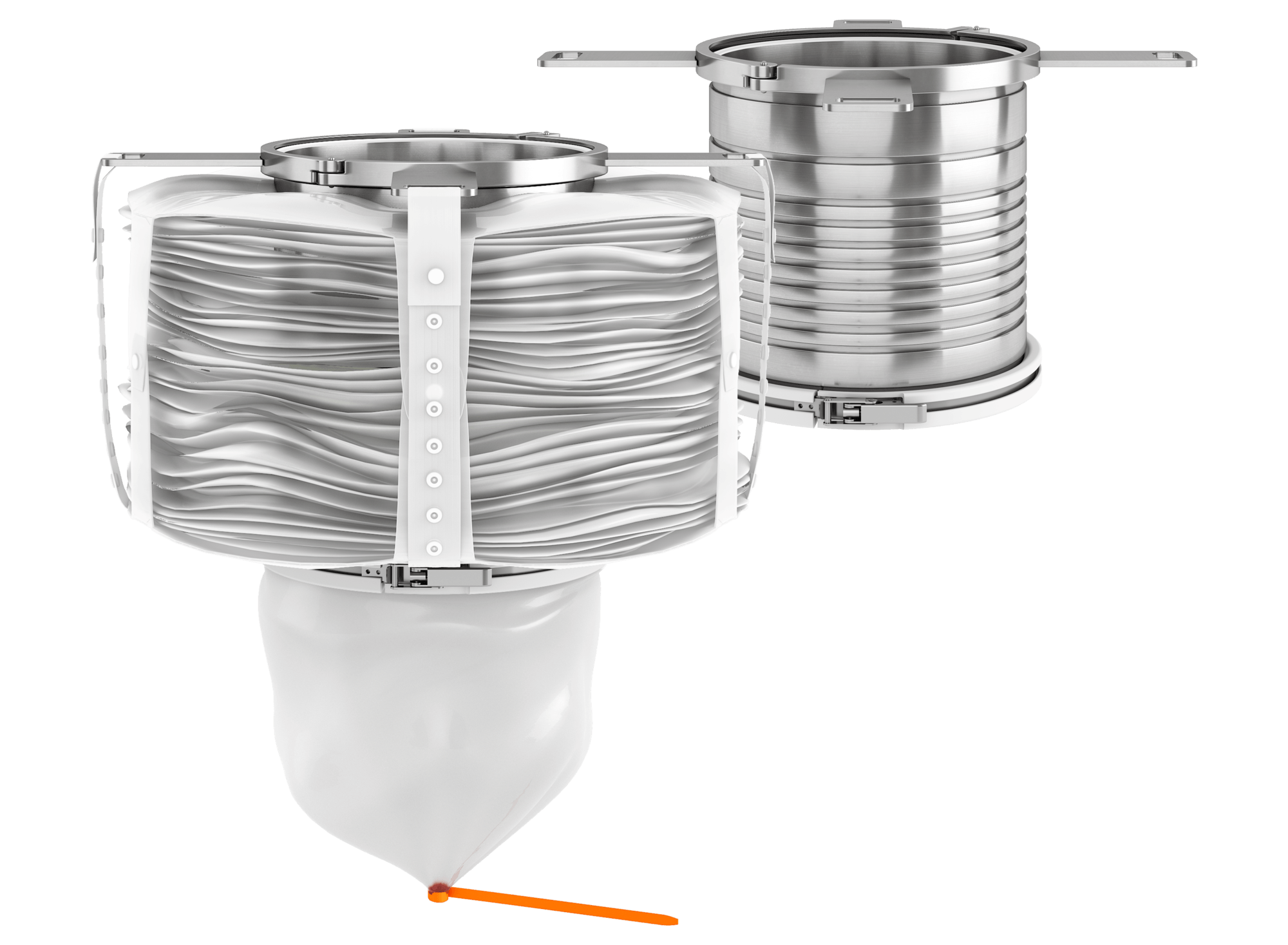

Continuous Liners

The Rheo Continuous Liner is an excellent pack-off solution for transferring materials from a work process into a transport container while maintaining a high level of containment. These come in various sizes and can be configured to work with existing process equipment.


KIT

[Part #4001493]
  • 14″ Diameter Liner
  • 15′ Length
  • 6 Ring, 8″ Diameter SS Canister
  • Clamps, Gasket, Shroud, Pack Protector, GripLoc

KIT

[Part #4000078]
  • 14″ Diameter Liner
  • 30′ Length
  • 6 Ring, 8″ Diameter SS Canister
  • Clamps, Gasket, Shroud, Pack Protector, GripLoc

KIT

[Part #4000546]
  • 14″ Diameter Liner
  • 50′ Length
  • 6 Ring, 8″ Diameter SS Canister
  • Clamps, Gasket, Shroud, Pack Protector, GripLoc

KIT

[Part #4001110]
  • 14″ Diameter Liner
  • 80′ Length
  • 6 Ring, 8″ Diameter SS Canister
  • Clamps, Gasket, Shroud, Pack Protector, GripLoc

KIT

[Part #4001390]
  • 23″ Diameter Liner
  • 30′ Length
  • 8 Ring, 12″ Diameter SS Canister
  • Clamps, Gasket, Shroud, Pack Protector, GripLoc

KIT

[Part #4001808]
  • 23″ Diameter Liner
  • 50′ Length
  • 5 Ring, 12″ Diameter SS Canister
  • Clamps, Gasket, Shroud, Pack Protector, GripLoc

KIT

[Part #4000427]
  • 23″ Diameter Liner
  • 50′ Length
  • 8 Ring, 12″ Diameter SS Canister
  • Clamps, Gasket, Shroud, Pack Protector, GripLoc

KIT

[Part #4000551]
  • 23″ Diameter Liner
  • 80′ Length
  • 8 Ring, 12″ Diameter SS Canister
  • Clamps, Gasket, Shroud, Pack Protector, GripLoc

KIT

[Part #4001455]
  • 23″ Diameter Liner
  • 100′ Length
  • 8 Ring, 12″ Diameter SS Canister
  • Clamps, Gasket, Shroud, Pack Protector, GripLoc

KIT

[Part #4000390]
  • 23″ Diameter Liner
  • 150′ Length
  • 8 Ring, 12″ Diameter SS Canister
  • Clamps, Gasket, Shroud, Pack Protector, GripLoc

PACK

[Part #4001012]
  • 14″ Diameter Liner
  • 15′ Length

PACK

[Part #4000683]
  • 14″ Diameter Liner
  • 30′ Length

PACK

[Part #4000520]
  • 14″ Diameter Liner
  • 50′ Length

PACK

[Part #4000523]
  • 14″ Diameter Liner
  • 80′ Length

PACK

[Part #4001441]
  • 23″ Diameter Liner
  • 30′ Length

PACK

[Part #4000684]
  • 23″ Diameter Liner
  • 50′ Length

PACK

[Part #4000993]
  • 23″ Diameter Liner
  • 80′ Length

PACK

[Part #4000105]
  • 23″ Diameter Liner
  • 100′ Length

PACK

[Part #4000098]
  • 23″ Diameter Liner
  • 150′ Length

View All


Sizes

Rheo Continuous Liners come in several standard diameters and lengths:

  • 14″ Diameter, 30′ Length
  • 14″ Diameter, 50′ Length
  • 14″ Diameter, 80′ Length
  • 23″ Diameter, 50′ Length
  • 23″ Diameter, 80′ Length
  • 23″ Diameter, 100′ Length
  • 23″ Diameter, 150′ Length

Custom sizes are available – contact your Regional Sales Manager with questions.



Discharge Mount

The Continuous Liner system will mount to the discharge chute of various equipment types. Rheo Engineering offers several options for connections, as well as valve controls and dosing systems that can be used for filling Continuous Liners.



Packout System

The Rheo Packout System is designed to facilitate the efficient filling of drums to an accurate weight. After the target weight is achieved, the system automatically stops the material transfer and notifies the operator.


Rheo Packout System (CL)

RheoCrimp Case

RheoCrimp

The RheoCrimp Kit includes the complete starter kit for the cable-tie and cut process. This starter kit comes in a high-quality carrying case and includes:

  • Cable -Tie Tensioner
  • 50 RheoCrimps
  • 50 Zip Ties
  • Roll of GMP Tape
  • Cutting Shears for cutting between Cable-Ties

RheoCrimp Case_Open
RheoCrimp Case_Open1
RheoCrimp Case

Accessories

Many accessories can be provided with our Continuous Liners to create a complete high containment system, some of these accessories include:

  • Containment Belts
  • Gloves
  • Clamps
  • Chutes
  • O-Rings


Film Collage

RheoFlex Film

Rheo liners are constructed from Polyethylene (with a non-migratory anti-stat) that has been tested and is fully compliant with all regulatory requirements. The film comes with a full documentation package tied to the labeled part number.



Testing Center

Rheo is able to do full mock-ups as well as containment performance verification in our Rheo Testing Center. Partner with our engineering team and we can produce a prototype system for your application and verify performance to build confidence in the implementation phase.


Rheo Testing Center
