Part Numbers

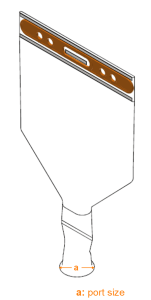

Port Size
Volume Film Thickness 3″ 4″ 6″ 8″
2L 4MIL 4002581 4002593
5L 6MIL 4002582 4002594
10L 6MIL 4002583 4002595 4002611 4002625
15L 6MIL 4002584 4002596 4002612 4002626
20L 6MIL 4002585 4002597 4002613 4002627
25L 6MIL 4002586 4002598 4002614 4002628
40L 10MIL 4002599 4002615 4002629
50L 10MIL 4002600 4002616 4002630
100L 10MIL 4002601 4002617 4002631



* includes RheoPac, Weloc Clamp, and Dust Cap

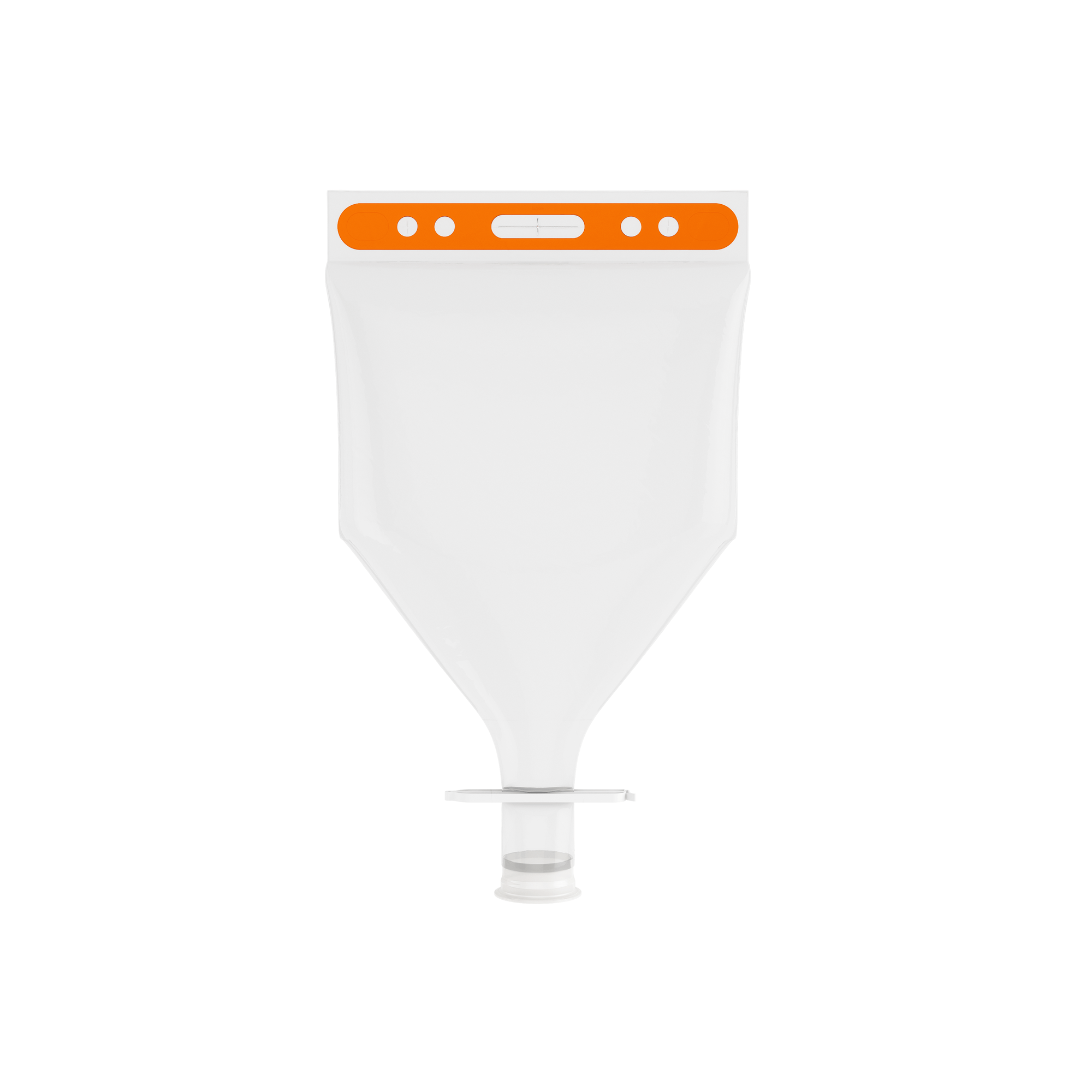

RheoPacs

Rheo Flexibles provides a wide range of single use transfer containers. The RheoPac family of products offer an excellent alternative to stainless intermediate transfer containers. The RheoPac can be designed with many valve and bag design configurations.



SoliValve®

The RheoPac can be equipped with an integrated SoliValve® passive that will allow the RheoPac to dock to Visval SoliValve® dosing technology. This SoliValve® technology uses a split cone valve to provide automatic docking and high containment during powder transfer from the RheoPac to the receiving container.


SoliValve100

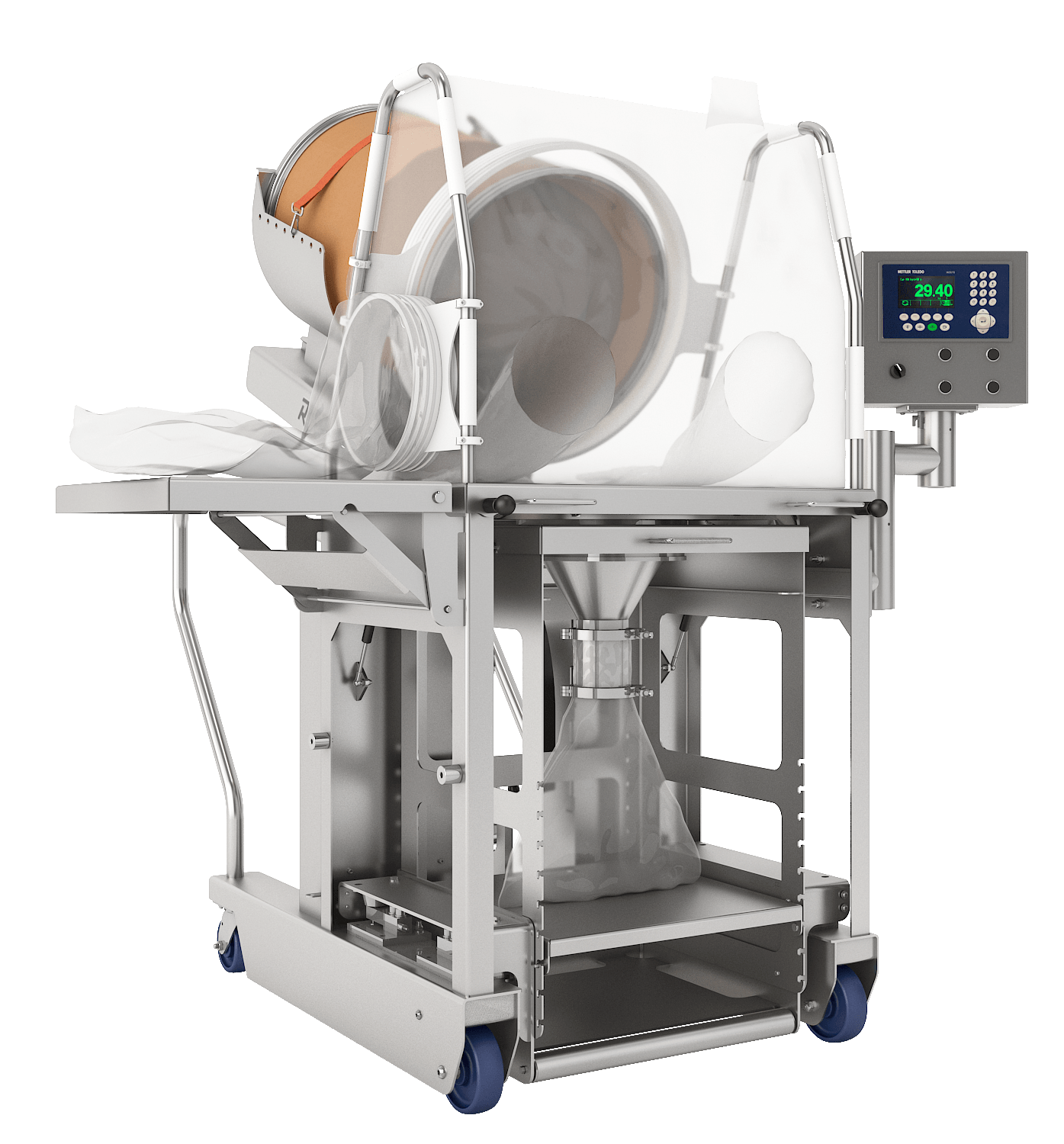

MTS Dispensing Workstation

Rheo offers a GMP dispensing workstation for filling RheoPacs. This system has a built-in Drum Tipper as well as an integrated load cell system that allows for weighing directly into the RheoPac.



Transport Cart

Rheo can provide GMP transfer carts to provide an easy means to transfer the filled bags from the dispensing station to the transfer point downstream in the process.



Column Lift

Rheo can provide a GMP column lift that can be used to lift and position one or multiple RheoPacs into position above the receiving vessel.



Accessories

Many accessories can be provided with our RheoPacs to create a complete high containment system, some of these accessories include:

  • Weloc Clamps
  • Tri-Lock Clamps
  • Gaskets


Film Collage

RheoFlex™ Film

RheoPacs are constructed from Polyethylene (with a non-migratory anti-stat) that has been tested and is fully compliant with all regulatory requirements. The film comes with a full documentation package tied to the labeled part number.



Testing Center

Rheo is able to do full mock-ups as well as containment performance verification in our Rheo Testing Center. Partner with our engineering team and we can produce a prototype system for your application and verify performance to build confidence in the implementation phase.


Rheo Testing Center
